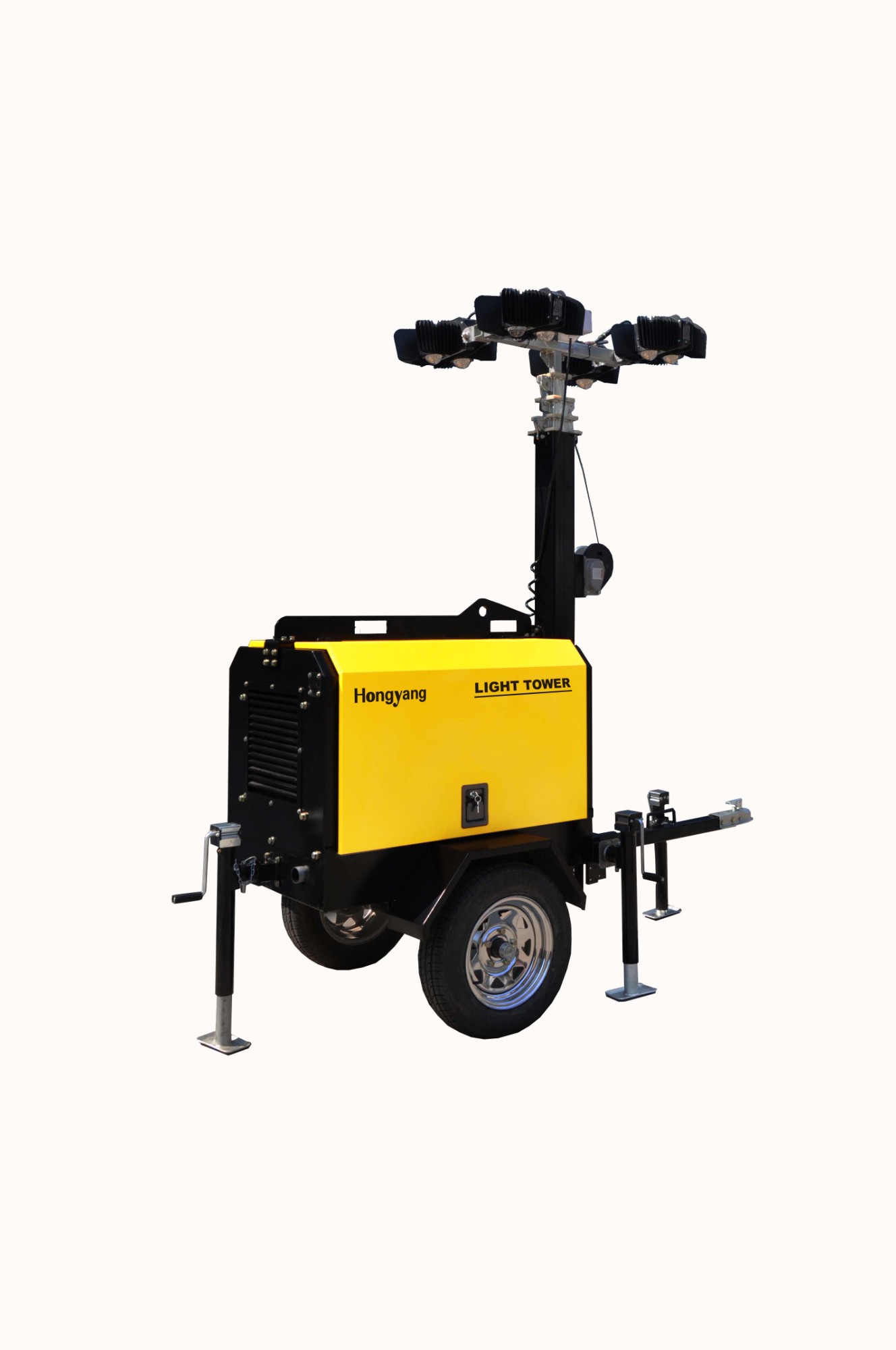

HYTK-V7 Light Tower
Attribute Value Mast Spec 8m, manual, 4 sections, 359° rotation Power 50Hz (6kW rated)/60Hz (7kW rated), 7-8kW max output Lighting 440000 lumens, 3900㎡ coverage (5 Lux min) Fuel & Engine 30L tank (1.85L/H consumption), Kubota D1105-E2BG engine
HYTK-V7 light tower has 8m mast, Kubota D1105-E2BG engine, 4*1000W lamps, 50/60Hz options, 3900㎡ coverage, fit for large-area lighting.
PHOTO MODEL | HYTK-V7 | |
Mast Height (m ) | 8 | |
Frequency(Hz) | 50 | 60 |
Rated voltage(V) | 230 | 240/120 |
Rated power (kW) | 6 | 7 |
Max.Output (kW) | 7 | 8 |
Power Outlet Sockets | 1*16A | 1*16A |
Fuel Consumption (L/H) | 1.7 | |
Fuel Tank Capacity (L) | 30 | |
Noise Level (7m)dB(A) | 76 | 76 |
Weight (KGS) | 800 | |
Dimension in Operation (L x W x H) mm | 2990x1300x8000 | |
Dimension in Transport (L x W x H) mm disassembly | 1950x1300x1010 | |
Load Capacity in 20FT (units) disassembly | 4 | 4 |
Load Capacity in 40HQ (units) disassembly | 9 | 9 |
Engine | Hongyang | |
Speed (rpm) | 1500 | 1800 |
Prime Power (kw) | 8.4 | 10.1 |
Cooling System | Water-cooled | |
Oil capacity | 5.1 | |
Alternator | Hongyang | |
Continued Power (kVA) | 7 | 8 |
Excitation mode | Capacitor exciter | |
Alternator Insulation | H | |
Protection Grade | IP23 | |
Mast | Manual | |
Section No. (Extened) | 4 | |
Mast Rotation | 359° | |
Mast Extension Time | 45 seconds | |
Mast Descend Time | 30 seconds | |
Lighting | ||
Type of lights | Metal halide lamp | |
Number & Power of the lights | 4*1000W | |
Light angle turning Mast Lighting & Extension | Manual | |
Electric (Option) | ||
Light angle turning | Manual | |
Luminous flux | 4*110000=440000 | |
Illum Area (5 Lux min) ㎡ | 3900 | |
Lamps Rotation | 75° (Manual) | |
Protection Glass | IP33 | |
Color Temperature | 4200K | |
Trailer | ||
Braking System | / | |
Hitch | Ball type/O Ring option | |
Tire Rim Size | 165/R14'' | |
Speed | <80km/h | |
