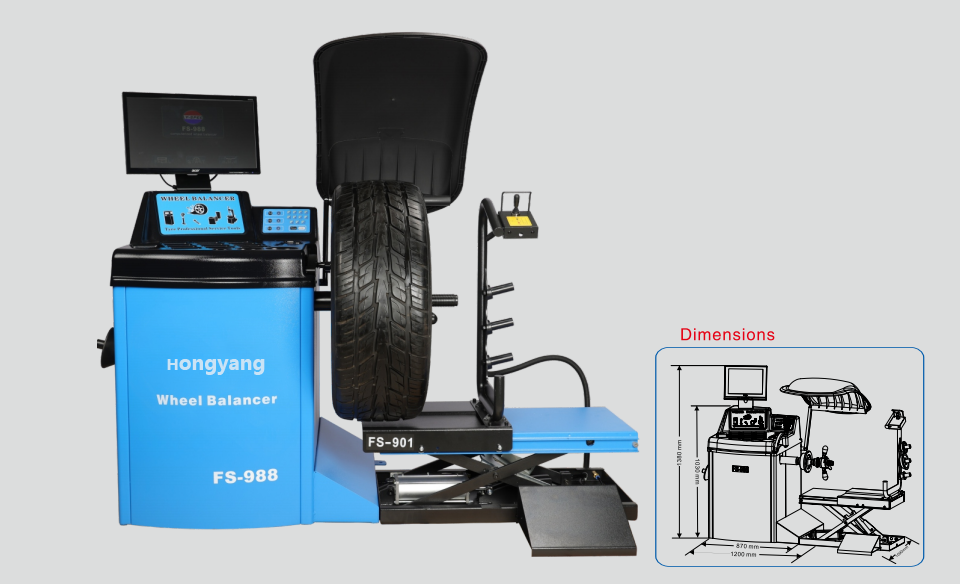

Wheel balancer FS-988/901
Focus on larger size and heavy duty tyre.With the characteristics of high-precision measurement and accurate repeated measurement accuracy5 optional modes of balancing weight. With automatic measurement function of rim diameter and distance.High mechanical principal axis perform the heat treatment to make sure the precision of high repeated measure.Make up for the shortcomings of the current balancing machine's lack of accuracy in balancing large tyres.Self-calibration function with automatic d
Product Description
Parameter | Specification |
---|---|
Power supply | 110V/50 - 60Hz 220V/50 - 60Hz |
Motor Power | 0.25KW |
Rim Diameter | 10'' - 26'' 234 - 660mm |
Rim Width | 1.5'' - 20'' 38-508mm |
Max. Wheel Diameter | 1000mm |
Max. Wheel Weight | 100kg |
Balancing Speed | <215 r.p.m |
Cycle Time | 8s |
Noise | <70dB |
Balancing precision | ±1g |
N.W. | 152Kg |
G.W. | 178Kg |
