HY8500DSE Diesel Generator Set
1.Rated Output:6.0KW,Max Output:6.5KW. 2. Digital Control Panel,Electic Starter. 3.Powered by HY192DFE(498cc) Air Cooled Single Cylinder Diesel Engine 4. 100% Copper Core Alternator 5. 16L Fuel Tank 6. Application: Home Use, Outdoor Project , Shop, Factory etc.

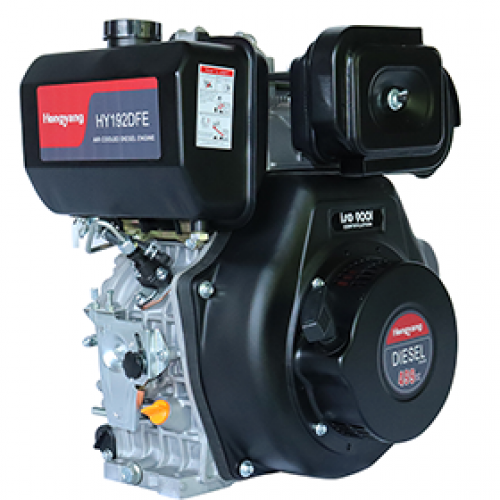

Product Description
Hongyang Heavy Duty Silent Diesel Generator Set is one portable small volume diesel generator, Powered by Air Cooled Single Cylinder Four Stroke Diesel Engine,with the features of lower noise, small volume, energy saving and longer service time.
Application: House, Shop,Factory and Outdoor Project etc.
Technical Data:
| Model No | HY8500DSE | HY8500DSE/3 | |||
Generator Set | Type | Silent Air Cooled Single Cylinder Diesel Generator Set | |||
| Rated Output: | 6.0KW | 6.5KW | 6.0KW | 6.5KW | |
| Max Output: | 6.5KW | 7.0KW | 6.5KW | 7.0KW | |
| Frequency: | 50HZ | 60HZ | 50HZ | 60HZ | |
| Phase No: | Single Phase | Three Phase | |||
| Power Factor | CosΦ=1 | CosΦ=0.8 | |||
| Noise Level@7m(dB) | 72-75(dB) | ||||
| Fuel | 0# or -10# Light Diesel | ||||
| Fuel Tank Capacity | 16L | ||||
| Excitation Mode | Brush(AVR) | ||||
| Starting Type | Electric Starter | ||||
| Engine | Engine Model | HY192DFE | |||
| Engine Type | Air Cooled Single Cylinder Four Stroke Direct Injection Diesel Engine | ||||
| Bore*Stroke | 92x75(mm) | ||||
| Displacement | 498cc | ||||
| Rated Output: | 7.6KW | 8.6KW | 7.6KW | 8.6KW | |
| Rotation Speed: | 3000 RPM | 3600RPM | 3000RPM | 3600RPM | |
| Lube Type: | Above CD Grade or SAE 10W-30,15W-40 | ||||
| Compression Ratio | 19:01 | ||||
| Lube Capacity | 1.65L | ||||
| Packing | Net Weight | 165KGS | |||
| Gross Weight | 170KGS | ||||
| Packing Dimensions(LxWxH) | 990x565x760mm / 1140x570x760mm | ||||
