HY1105DFE Diesel Engine

1.Rated Output:12.5KW
2.Displacement:762cc
3.Fuel Tank Capacity:6.5L
4.Electric Starter
5.Power Take Off: Crankshaft
6.Application:Generator, Agriculture Machinery, Construction Machinery, Boat etc
Product Description

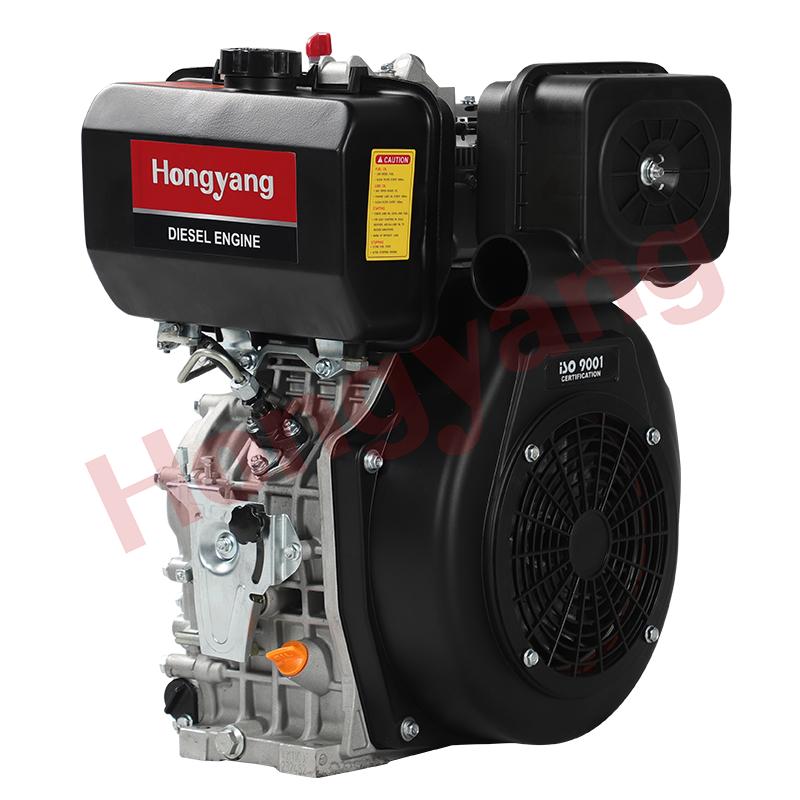

HY1105DFE Air Cooled Single Cylinder Diesel Engine

1105.jpgHongyang HY1105DFE Diesel engine is one air-cooled single-cylinder direct injection diesel engine is a reliable and efficient power source known for its exceptional performance and durability.

1.Rated Output:12.5KW/17HP

2. Roation Speed:3000rpm

3. Fuel Tank Capacity:6.5L

4. Power-Take-Off: Crankshaft




Model No:HY1105DFE
Type:Air Cooled Single Cylinder Four Stroke Direct Injection Diesel Engine
Bore*Stroke(mm)105x88
Displacement(cc):762
Compression Ratio:18:01
Rated Output: KW/HP12.5KW/17.0HP
Roation Speed 3000rpm
Fuel Type:0# or -10# Light Diesel
Fuel Tank Capacity:6.5L
Lube TypeAbove CD Grade or SAE 10W-30, 15W-40
Lube Capacity:2.1L
Starting System:Electric Starter
Power-Take-OffCrankshaft
Net Weight:
68Kgs
Packing Dimension(LxWxH)525x500x650mm
