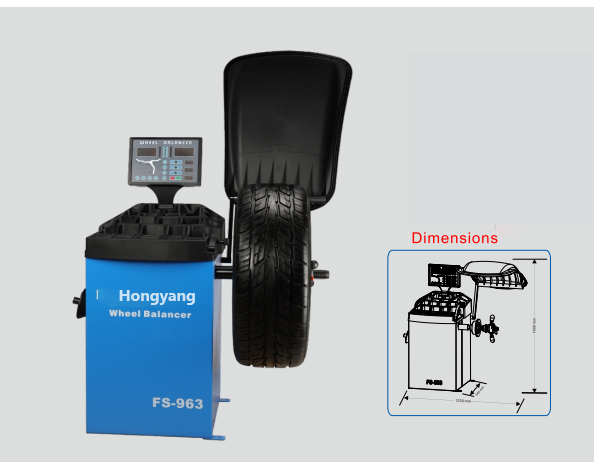

Wheel balancer FS-963
Automatic measurement for data of distance and rim diameter.With self calibration and self diagnosis functions.Lengthened main shaft is suitable for various wheel rims.Easy access to different programs with different function keys.With protective cover, which can be lowered for starting and lifted forbraking.And it also can be started by a button on the control panel.
Product Description
| Parameter | FS - 963 Specification | FS - 963A Specification |
|---|---|---|
| Model | FS - 963 | FS - 963A |
| Power supply | 110V/50 - 60H 220V/50 - 60Hz | 110V/50 - 60Hz 220V/50 - 60Hz |
| Motor Power | 0.25KW | 0.25KW |
| Rim Diameter | 10" - 24" 254 - 610mm | 10" - 24" 254 - 610mm |
| Rim Width | 1.5" - 20" 38 - 510mm | 1.5" - 20" 38 - 510mm |
| Max. Wheel Diameter | 38" 960mm | 38" 960mm |
| Max. Wheel Weight | 70Kg | 70Kg |
| Balancing Speed | ~215 r.p.m | ~215 r.p.m |
| Cycle Time | 8s | 8s |
| N.W. | 77Kg | 70Kg |
| G.W. | 95Kg | 88Kg |
